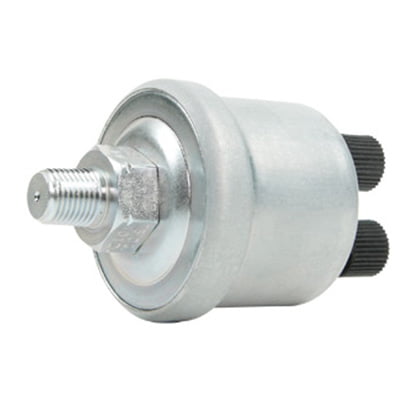

Pressure sensor

Pressure sensors are used in vehicles and machines to record the pressure of oil or air and to forward the measurement result to a pressure display. MOTOMETER pressure sensors are available in pressure ranges of between 0 bar to 25 bar. The pressure sensor is screwed in; the prevailing pressure changes a mechanically influenced potentiometer integrated in the housing. Operation is possible with 12 Volt or 24 on-board supply system. The sensors are available in 1-pin grounded, off earthed as well as grounded with warning contact.

Compatible with MOTOMETER pressure displays
644 001 xxxx
644 060 xxxx

For more information, check out our product sheet:

Download Product Sheet

Discover now our pressure sensors in the MOTOMETER shop

Discover our product selection and experience precise pressure measurement in perfection with our pressure sensor! Visit our shop now to find the perfect solution for your needs.

MOTOMETER Shop
Pressure range Thread Connection Part No.
0 – 5 bar M10 x 1k Knurled nut M4 675 002 1001
0 – 5 bar M14 x 1,5 Knurled nut M4 675 002 1037
0 – 10 bar M12 x 1,5 Knurled nut M4 675 002 1003
0 – 10 bar 1/8“ – 27 NPTF Knurled nut M4 675 002 1004
0 – 10 bar M14 x 1,5 Knurled nut M4 675 002 1012

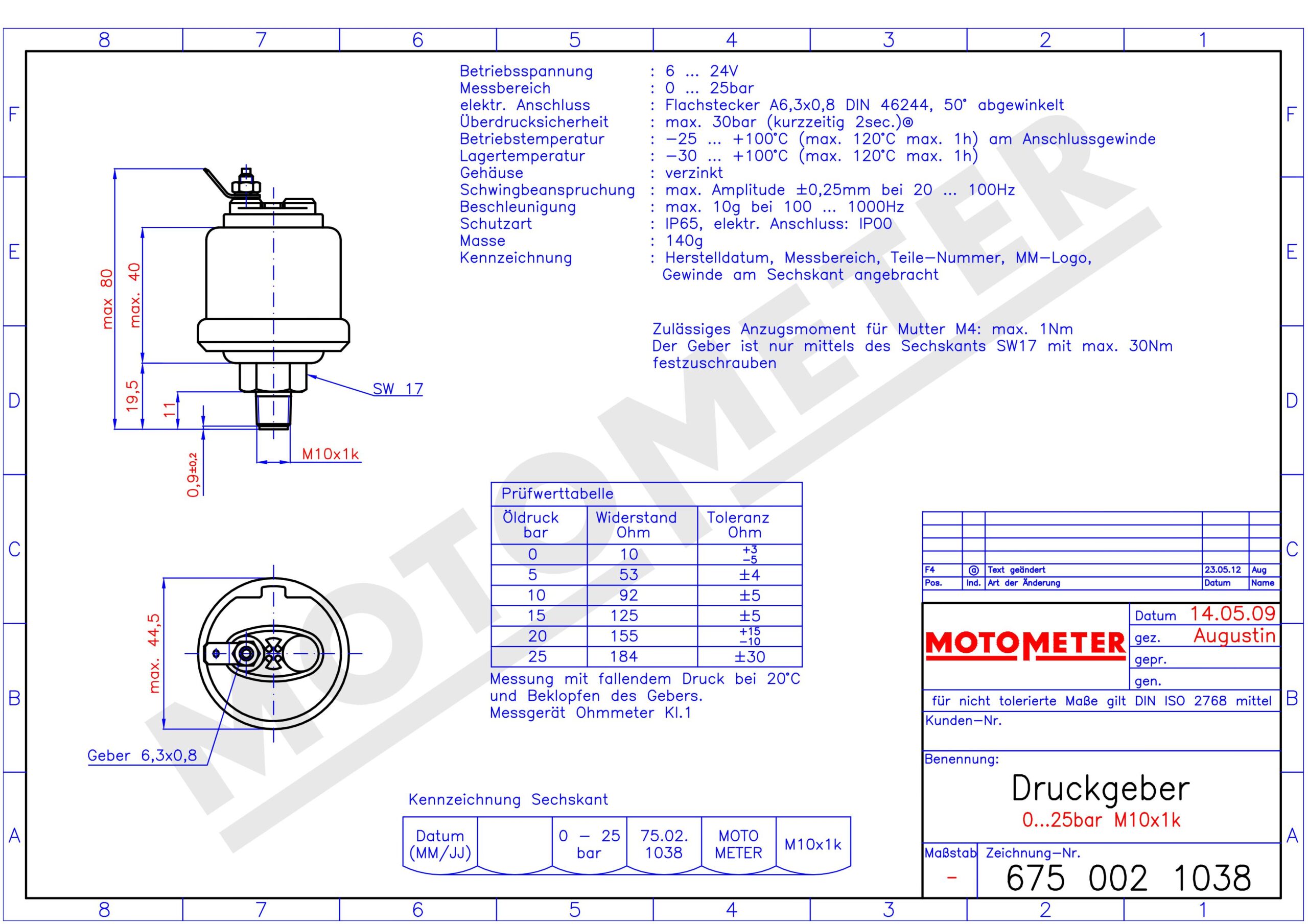

0 – 25 bar M10 x 1k Flat connector, A 6,3 x 0,8 675 002 1038
Pressure range Thread Connection Part No.
0 – 5 bar M10 x 1k mass-free Knurled nut M4 675 003 1016
0 – 10 bar M10 x 1k mass-free Knurled nut M4 675 003 1008
0 – 10 bar M14 x 1,5 mass-free Knurled nut M4 675 003 1010
0 – 25 bar 1/8“ – 27 NPTF mass-free Hexagon nut M4 675 003 1014
0 – 25 bar M14 x 1,5 mass-free Hexagon nut M4 675 003 1027

The pressure sensor with warning contact is screwed in. If the defined pressure is not reached, an electrical contact is closed, which sends out a warning signal. Operation is possible with 12 Volt or 24 Volton-board supply system. The pressure range is between 0 bar and 10 bar; the warning contact is between 0.25 bar and 5.2 bar, depending on the version.
Compatible with MOTOMETER pressure displays: 644 001 xxxx and 644 060 xxxx.



Pressure range Warning contact Thread Thread Part No.

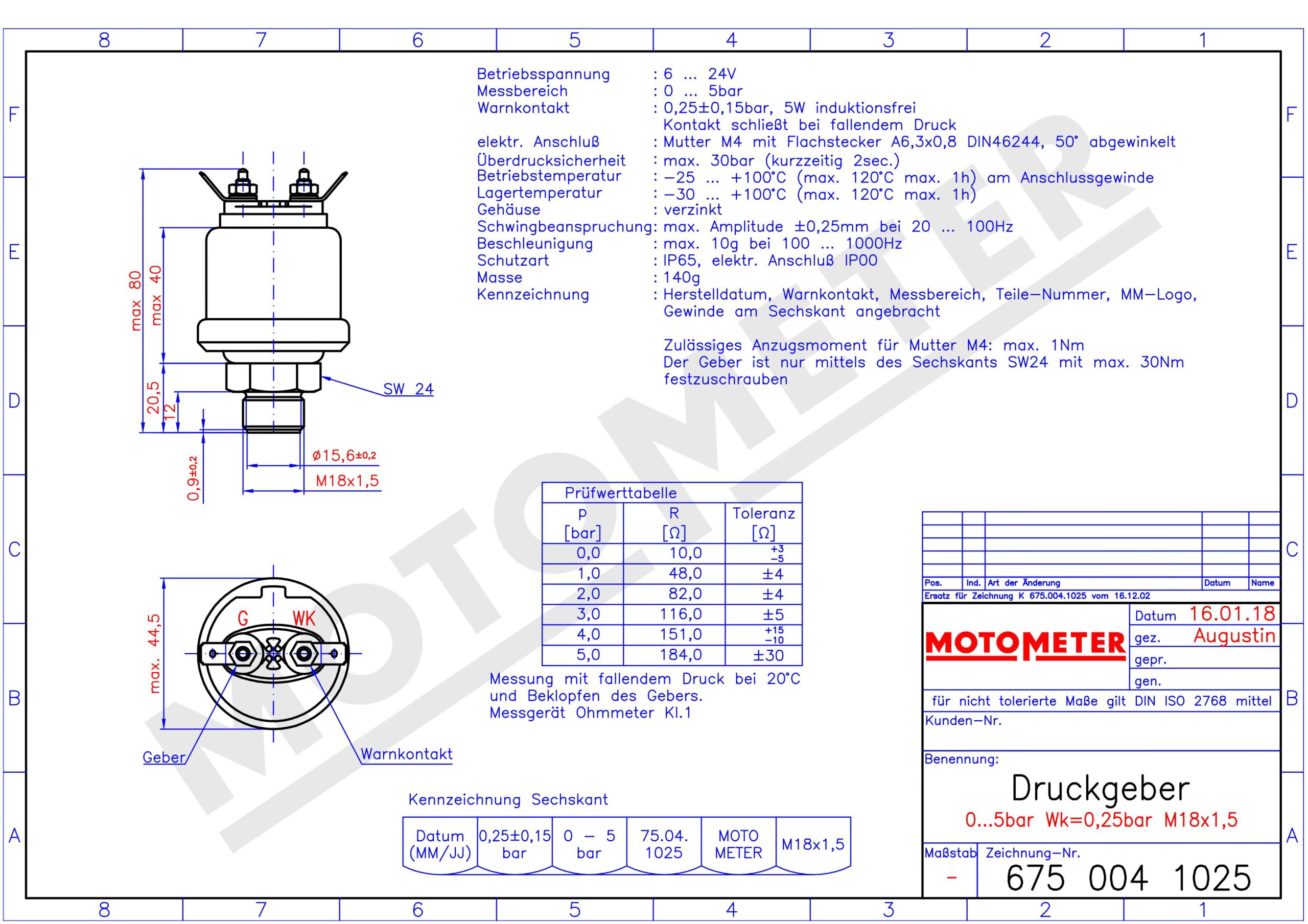

0 – 5 bar 0,25 bar M18x1,5 A 6,3 x 0,8 675 004 1025
0 – 5 bar 0,25 bar M10x1k Knurled nut M4 675 004 1006
0 – 5 bar 0,25 bar M18x1,5 Knurled nut M4 675 004 1051
0 – 5 bar 0,5 bar M18x1,5 Knurled nut M4 675 004 1003
0 – 5 bar 0,5 bar M10x1k Knurled nut M4 675 004 1005
0 – 5 bar 0,5 bar M14 x 1,5 A 6,3 x 0,8 675 004 1050
0 – 5 bar 0,6 bar M10x1k Knurled nut M4 675 004 1009
0 – 5 bar 0,7 bar M10x1k Knurled nut M4 675 004 1007
0 – 5 bar 0,9 bar 1/8“ – 27 NPTF Knurled nut M4 675 004 1043
0 – 5 bar 5,2 bar M10 x 1k Knurled nut M4 675 004 1001
0 – 10 bar 0,5 bar M10 x 1k Knurled nut M4 675 004 1002
0 – 10 bar 0,5 bar M18 x 1,5 Knurled nut M4 675 004 1004
0 – 10 bar 0,5 bar M14 x 1,5 Knurled nut M4 675 004 1023
0 – 10 bar 0,6 bar M18 x 1,5 Bayonet 675 004 2002
0 – 10 bar 0,7 bar M14 x 1,5 Knurled nut M4 675 004 1024
0 – 10 bar 0,75 bar M10 x 1k A 6,3 x 0,8 675 004 1011
0 – 10 bar 0,8 bar 1/8“ – 27 NPTF Knurled nut M4 675 004 1038
0 – 10 bar 0,9 bar M10 x 1k Knurled nut M4 675 004 1012
0 – 10 bar 1,5 bar M12 x 1,5 Knurled nut M4 675 004 1018
0 – 10 bar 2,0 bar M10 x 1k Knurled nut M4 675 004 1013
0 – 10 bar 5,2 bar M12 x 1,5 Bajonett 675 004 2004
