Fuel tube sensor with 54 mm flange

Our Fuel Tube Sensors with 54 mm Flange are used in vehicles and machinery powered by diesel or gasoline. The sensor is directly immersed into the medium. An internal float within the immersion tube always moves on the liquid surface, altering an internal resistance. This allows for a quick and reliable indication on conventional fuel gauges.

MOTOMETER immersion level sensors are characterized by their robust construction, ensuring a long lifespan due to special alloy resistance wire and high-quality metal tube materials. Our Fuel Tube Sensors with 54 mm Flange are suitable for installation in vehicle tanks with depths of up to 800 mm. For deeper immersion depths exceeding 600 mm, we recommend using a sensor with an 80 mm bolt circle diameter to account for slosh forces. All models are designed for a voltage range of 6 to 24 volts.

For personalized quotes and advice, we are at your service. Contact us today to receive tailor-made solutions for your requirements.

Our Fuel Tube Sensor 54 mm Flange variants:

Product Image
Drawing
Ø hole circle
Length
Resistance FULL
Resistance EMPTY
Connection
Note
Shop Link

608 010 1001

54 mm
131,5 mm
2,3 +/- 0,4
61,3 +/- 1,4
A 6,3 x 0,8

608 010 1002

54 mm
166,5 mm
2,3 +/- 0,7
81,1 +/- 2,5
A 6,3 x 0,8

608 010 1003

54 mm
192,0 mm
1,6 +/- 0,7
67,1 +/- 2,1
A 6,3 x 0,8

608 010 1004

54 mm
221,5 mm
1,6 +/- 0,4
78,8 +/- 1,6
A 6,3 x 0,8

608 010 1005

54 mm
251,0 mm
2,8 +/- 0,7
62,5 +/- 2,1
A 6,3 x 0,8

608 010 1006

54 mm
279,5 mm
1,1 +/- 0,4
70,3 +/- 1,6
A 6,3 x 0,8

608 010 1048

54 mm
292,5 mm
1,1 +/- 0,6
73,8 +/- 1,6
A 6,3 x 0,8

608 010 1008

54 mm
341,5 mm
2,2 +/- 0,5
89,8 +/- 1,8
A 6,3 x 0,8

608 010 1010

54 mm
404,5 mm
1,5 +/- 0,7
73,3 +/- 2,3
A 6,3 x 0,8

608 010 1011

54 mm
433,5 mm
0,8 +/- 0,4
77,3 +/- 1,6
A 6,3 x 0,8

608 010 1012

54 mm
463,5 mm
0,8 +/- 0,5
83,0 +/- 1,8
A 6,3 x 0,8

608 010 1013

54 mm
498,5 mm
0,5 +/- 0,4
61,4 +/- 1,4
A 6,3 x 0,8

608 010 1031

54 mm
525,0 mm
2,0 +/- 0,1
68,0 +/- 6,0
A 6,3 x 0,8

608 010 1032

54 mm
525,0 mm
1,5 +/- 0,7
66,0 +/- 2,3
A 6,3 x 0,8

608 010 1049

54 mm
590,5 mm
0,6 + 0,7 +/- 0,4
73,3 +/- 1,6
A 6,3 x 0,8
With ground contact

608 010 1065

54 mm
602,0 mm
0,8 +/- 0,4
57,4 +/- 1,2
A 6,3 x 0,8
With bottom spring
Technical Details

Compatible with MOTOMETER fuel displays:
609 004 xxxx
609 005 xxxx

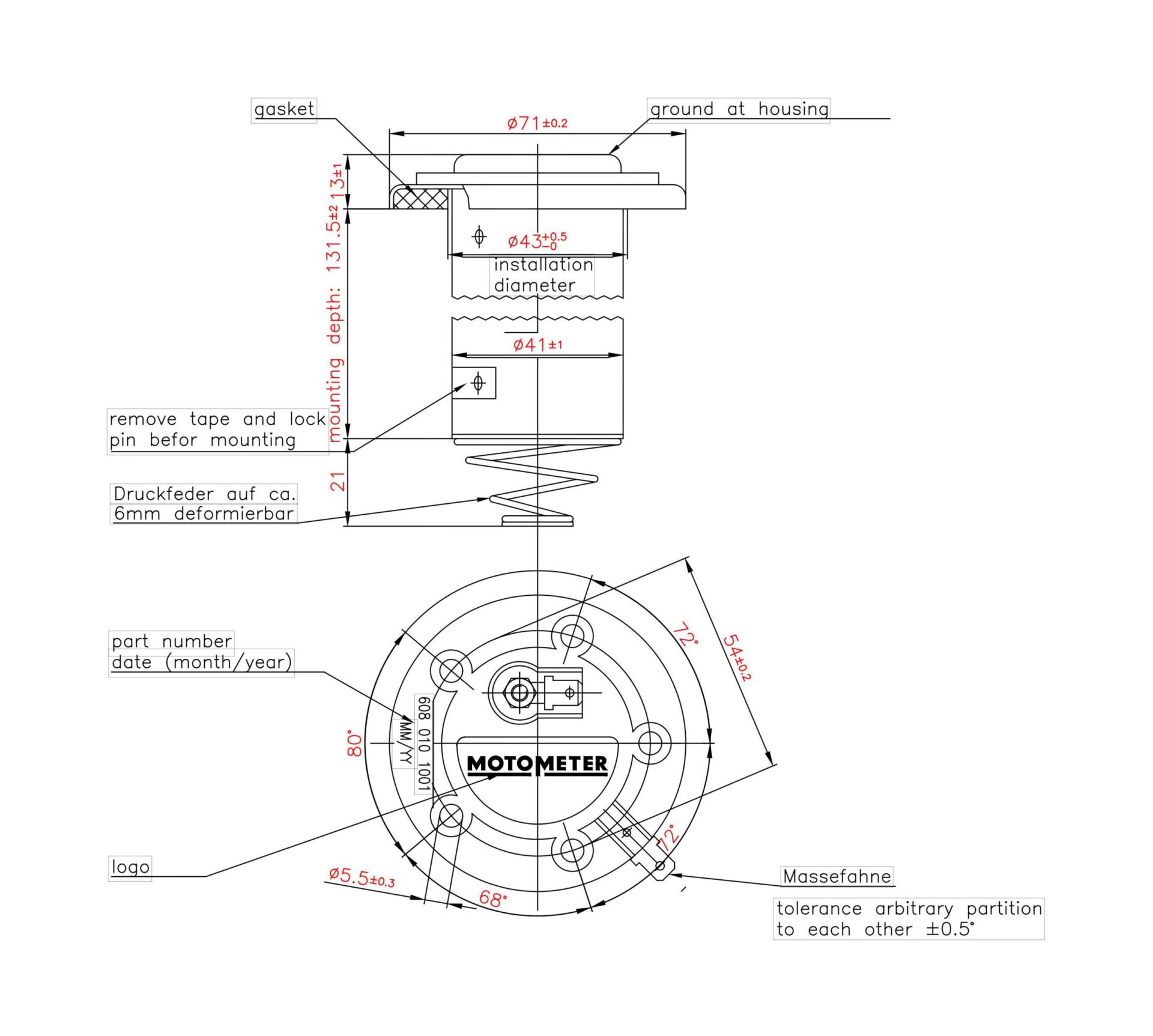

Beispielzeichnung

Our range includes customized solutions for your specific requirements for our Fuel Tube Sensor with a 54 mm flange!

If none of our listed products exactly meets your needs, feel free to contact us via our contact form. We specialize in discussing individual requests and adapting products accordingly. Our experienced team is available at all times to understand your requirements and provide you with the optimal solution.

Contact us now

Get the comprehensive product datasheet for our Fuel Tube Sensor with a 54 mm Flange now!

Learn everything you need to know about our product to optimize the efficiency of your tank measurement. Click here to download the datasheet and take the first step towards greater precision in tank monitoring!
