Brake Pressure Switch

Brake pressure switches are essential components in vehicles and machinery. They respond when a predefined pressure is exceeded by either opening or closing a contact. Our MOTOMETER brake pressure switches are versatile and available in various configurations.

They can be operated in both 12-volt and 24-volt electrical systems and have switching points ranging from 0.5 bar to 9 bar, depending on the model.

In addition to our standard models, we also offer customized solutions tailored to your specific needs. Simply contact us with your requirements, and we will promptly get in touch with you to provide personalized offers and advice.

Our different Brake Pressure Switch variants:

Product Image
Drawing
Switch Point
Switching Contact
Thread
Max. Switching Capacity (non-inductive)
Max. continuous pressure range
Identical in construction to
Link zum Shop

679 011 1002

4,0 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 000 545 47 14

679 011 1005

5.7 + 0.3 bar at 20°C with decreasing pressure
Normally Open (NO)
M12 x 1,5
30 W
5,7 bar
A 000 545 47 14

679 011 1009

0,5 + 0,1/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 001 545 79 14

679 012 1010

0,5 +/-0,2 bar
Shutter
M12 x 1,5
30 W
10 bar
A 002 545 50 14

679 012 1005

1,0 +/-0,2 bar
Shutter
M12 x 1,5
30 W
10 bar
A 001 545 41 14

679 016 1001

1,8 +/-0,2 bar
Shutter
M12 x 1,5
30 W
10 bar
A 002 545 45 14

679 012 1004

2,5 +/-0,2 bar
Shutter
M12 x 1,5
30 W
10 bar
A 001 545 57 14

679 001 1013

2,7 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 002 545 97 14

679 012 1003

4,0 +/- 0,2 bar
Shutter
M12 x 1,5
30 W
10 bar
A 000 545 91 14

679 001 1001

5,0 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 000 545 43 14

679 011 1003

5,5 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 000 545 54 14

679 002 1007

6,0 +/-0,2 bar
Shutter
M12 x 1,5
30 W
10 bar

679 011 1006

6,3 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 001 545 16 14

679 011 1011

6,7 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 002 545 39 14

679 011 1016

6,9 +/-0,2 bar
Opener
M12 x 1,5
30 W
10 bar
A 004 545 63 14
Technical Details

Design variants
679 001 xxxx opens when the pressure is exceeded
679 003 xxxx opens when the pressure is exceeded

Available only off-earthed
679 002 xxxx closes when the pressure is exceeded
679 004 xxxx closes when the pressure is exceeded

Our customized solutions cater to your specific requirements for brake pressure switches!

If our standard products do not precisely meet your needs, feel free to reach out to us via our contact form. We specialize in discussing individual inquiries and adjusting products accordingly. Our experienced team is available at all times to understand your specific requirements and provide you with the optimal solution.

Contact us now

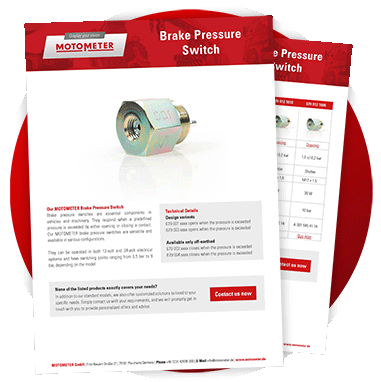

Take advantage of our comprehensive product sheet for our brake pressure switch!

Gain all the essential information about our product to maximize the efficiency of your brake pressure monitoring. Click here to download the product sheet and take the first step towards precise brake pressure measurement!
